| Name Of Product |
|
| CHEMICAL ANCHOR HAMMER TYPE - (IDKIC) |
| Information of Product |
|
CHEMICAL ANCHOR HAMMER TYPE - (IDKIC)
|
-
It is used with reinforcement bar or threaded rods
- Reinforces soft and loose surfaces
- Applicable within water
-
Suitable to dynamic loads
-
Vibration doesn’t effect holding strength
-
Does not exert pressure on holding surfaces applied, it athears
-
set the threaded rod or reinforcement bar with the help of a hammer
|

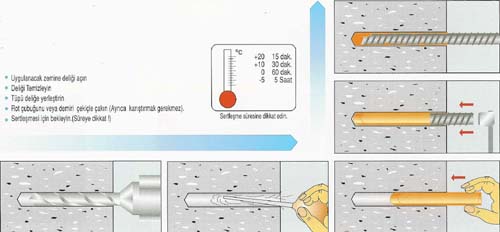

APPLICATION
|
TECHNICAL PICTURE
|
|
|
|
| |
|
CHEMICAL ANCHOR HAMMER TYPE - (IDKIC)
| Size |
M10
|
M12
|
M16
|
M20
|
| Max.permissible load for single anchor (kN) |
8
|
10
|
17
|
27
|
| permissible bending moment at proper edge and axial spacing |
21,7
|
37,4
|
94,6
|
186
|
· rod size to be used mm
|
|
|
|
|
| temperature of concrete °C |
|
|
|
|
|
Code
|
Size M
|
Outside Diameter Ø(mm)
|
Anchor Lenght S (mm)
|
t max (mm)
|
L (mm)
|
Distance Between Anchors c(mm)
|
Distance From Edge d(mm)
|
Fastenable Thickness e(mm)
|
ØD (mm)
|
H (mm)
|
Quantity / Box
|
| IDKIC10 |
M10
|
10
|
85
|
20
|
S+t
|
220
|
110
|
140
|
13
|
90
|
10
|
| IDKIC12 |
M12
|
12
|
95
|
25
|
S+t
|
270
|
135
|
160
|
15
|
110
|
10
|
| IDKIC16 |
M16
|
16
|
95
|
40
|
S+t
|
310
|
155
|
175
|
20
|
140
|
10
|
| IDKIC20 |
M20
|
20
|
170
|
50
|
S+t
|
420
|
210
|
230
|
25
|
180
|
5
|
|
|
|
