Product Name

HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE (WITHOUT NUT) - (IKB1)
Description
HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE (WITHOUT NUT) - (IKB1)

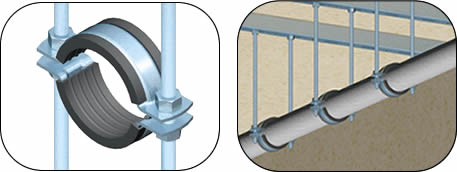

APPLICATION
TECHNICAL PICTURE


HEAVY DUTY PIPE CLAMP WITHOUT RUBBER PROFILE (WITHOUT NUT) - (IKB1)

Size Inch
Breaking Load (KN)
Recommended Max Load (KN)
1/2" -2"
11,0
2,75
67 - 129
15
3,75
129 -10"
24
6
12" - 20"
35,1
11,7



Code
Size Inch
Clamping
Range
L
sxB
ØE
F
Quantity / Box
Weight
/ Box
( Kg )
IKA1020
3/4"
25 - 30
90
2,5x30
10
8,5
50
10,7
IKA1025
1"
32 - 38
98
2,5x30
10
8,5
50
11,2
IKA1032
1 1/4"
39 - 46
106
2,5x30
10
8,5
50
11,45
IKA1040
1 1/2"
48 - 53
114,5
2,5x30
10
8,5
50
13,45
IKA1047
54 - 58
54 - 58
120,5
2,5x30
10
8,5
50
14,6
IKA1050
2"
59 - 66
127
2,5x30
10
8,5
50
15,7
IKA1055
67 - 73
67 - 73
143,5
3x30
12
10,5
25
8
IKA1065
2 1/2"
74 - 80
152
3x30
12
10,5
25
8,7
IKA1072
80 - 87
80 - 87
160
3x30
12
10,5
25
9,3
IKA1080
3"
87 - 94
163
3x30
12
10,5
25
9,4
IKA1085
95
95 - 98
171
3x30
12
10,5
25
10,1
IKA1089
99 - 108
99 - 108
179
3x30
12
10,5
25
10,25
IKA1100
4"
108 - 116
188
3x30
12
10,5
25
10,6
IKA1112
120 - 129
120 - 129
201
3x30
12
10,5
25
12,7
IKA1118
129 - 135
129- 135
226,5
4x40
14
12,5
10
10,05
IKA1125
5"
135 - 143
233,5
4x40
14
12,5
10
10,5
IKA1150
6"
162 - 168
256,5
4x40
14
12,5
10
10,7
IKA1200
8"
206 - 220
316
4x40
14
12,5
10
13,3
IKA1250
10"
260 - 274
365
4x40
14
12,5
10
15,5
*IKB1300
12"
324
421
5x50
Ø17
-
5
13,9
*IKB1350
14"
355,6
453
5x50
Ø17
-
5
14,95
*IKB1400
16"
406,4
504,5
5x50
Ø17
-
5
16,75
*IKB1450
18"
457
564,2
7x70
Ø17
-
2
11,44
*IKB1500
20"
508
621,5
7x70
Ø17
-
2
12,42
