| Product Name |
|
| PORTABLE CUTTING MACHINES >>> IK-12BEETLE - 5602050 LIFHTEST PORTABLE FLAME CUTTING MACHINE |
| Description |
|
|
|
Lightest Portable Flame Cutting Machine
|
|
|
 Properties
Automatic straight & accurate line cutting
All functins are controlled by forward/off/reverse switch, clutch
lever and speed adjustment knob.
Suitable for straight line, circle and bevel cutting.
Plate track for straight line cutting is available in sections
of 1.8 m.
An adjustable radius bar for circle cutting is optionally available.
It is possible to work with 2 torches.
By adding any number of standard rails, cutting of any length
is possible
|
|
|
| Files : |
|
|
|
| Applications : |
|

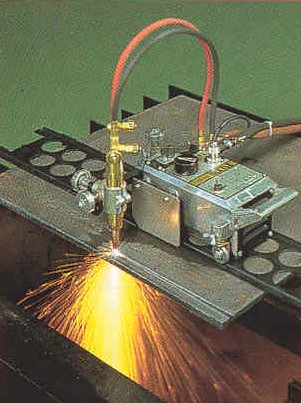

IK 12 Beetle cuts straight lines and circles
on rail.
|
|
| Cutting Thickness |
5 - 100 mm |
| Cutting Speed |
150 - 180 mm/min |
| Speed Control |
Single Cone System |
| Line Voltage (1 Phase) |
220 V / 50 Hz |
| Weight (one torch set) |
9.5 kg |
| Weight (two torch set) |
13 kg |
| Cutting Edge Shape |
Square cutting, V-bevel cutting |
|
|
| Cutting Tip for Any Fuel
Gas (No 0,1,2) |
|
3 |
| Cabtyre cord (5 m) |
|
1 |
| Tip Cleaner |
|
1 |
| Tool Set |
|
|
| 3 Hoses (from torch to valve)
|
|
|
|
|
|
| Ø30 - 1700 mm Circle Cutting
Attachment |
|
| Ø60 - 2400 mm Circle Cutting
Attachment |
|
| Straight Rail 1,8 m |
|
|
|
|
|
|
