| Product Name |
|

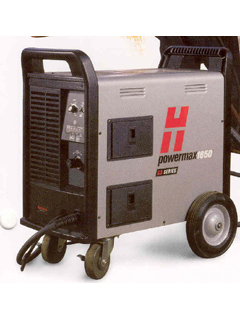

| AIR PLASMA CUTTING >>> Powermax 1650 |
| Description |
|
|
|
|
|
|
Hypertherm Plazma Kesme Makinesi
|
|
|
 Properties
Superior speed and cutting capacity
Longer parts life
Lower operating cost
Higher-quality cuts
Safety, reliability, ease of use
100-amp, 16-kilowatt output provides ample power for cutting
heavy plate cleanly and quickly
Auto-voltage input sensing allows you to to run on voltages
from 200 to 600 V, 3-phase
CNC/Robotic machine interface is standard on all units
Advanced, digitally-controlled inverter design delivers
continuously adjustable constant current output, from 30 to
100 amps, permitting high-quality cuts
An active electronic pilot arc controller for cutting expanded
metal or grating
New gouging setting allows for improved arc transfer, easier
operation and faster metal removal
|
|
|
| Files : |
|
|
| Applications : |
|
It is an inverter type plasma cutting
machine which cuts metals to 1-1/4 inch (32 mm) at cutting speed
19' (48 cm) per minute, metals to 1-1/2 inch (38 mm) at cutting
speeds over 10 inches (25 cm) per minute and which has a severance
capacity of 1-3/4' (44 mm)
|
|
| Input Voltage |
230 – 400 V, 3-faz, 50/60
Hz, CE |
| Output Voltage |
160 VDC |
| Output Current 100%
400 – 600 V |
90 A |
| Maximum OCV |
300 VDC |
| Dimensions |
671 x 427 x 655 mm |
| Weight with torch |
58 kg |
|
|
| Plasma Gas |
Air or Nitrogen |
| Shield Gas |
Air or Nitrogen |
| Flow Rate (Plasma Gas)
|
260 l/min |
| Flow Rate |
260 l/min |
| Flow Pressure (Plasma
Gas) |
5,1 bar |
| Flow Pressure (Shield
Gas) |
5,1 bar |
|
|
|
|
|
|
