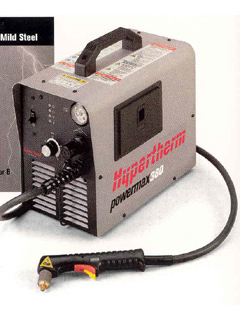

Hypertherm Plasma Cutting Machine
|
|
|
 Properties
Boost circuit compansates for low-line conditions
Pilot arc control circuit for cutting expanded metal or
grating
Uses low-cost compressed air
Dual-voltage (115/230 volts) portable power supply
Non-high-frequency pilot arc
Integrated consumable storage compartment
PAC 110T torch
|
|
|
| Files : |
|
|
| Applications : |
| Ideal choice for cutting thin metal
up to 3/8 inch (10mm) for production and repair purposes. Cutting
speeds are 20 inch per minute up to 1/4" (6mm) and 10 inch per
minute up to 3/8" (10mm). Severence is at 1/2" (12mm). |
|
| Line Voltage (1 Phase) |
115/230 V / 50 Hz |
| Line Power (35%) |
|
| Line Current (230 V) |
14 A |
| Recommended Line Fuses |
1 x 16 A |
| Output Voltage |
92 VDC |
| Output Current (35%) |
27 ADC |
| Cutting Current Range |
14 - 27 ADC |
| Maximum Open Circuit
Voltage |
288 VDC |
| Dimensions (l x w x h ) |
406 x 216 x 305 mm |
| Weight |
25 kg |
|
|
| Plasma Gas |
Air |
| Shielding Gas |
Air |
| Flow Rate (Plasma Gas) |
170 l/min |
| Flow Rate (Shielding
Gas) |
170 l/min |
| Flow Pressure (Plasma
Gas) |
4.1 bar |
| Flow Pressure (Shielding
Gas) |
4.1 bar |
|
|
